Titanium Alloy Intake And Exhaust System: When The Ultimate Performance Meets The Aesthetics Of Burning Color

In the field of automobile modification, “Change the car first to change the gas” is a deeply rooted experience. The intake and exhaust system is not only related to the power release of the engine, but also affects the control response and visual style of the vehicle. In recent years, a metal known as the “ultimate material”-titanium alloy-is redefining the performance standards and aesthetic heights of the intake and exhaust systems.

1. Why Is It Titanium Alloy?——Not Only Lightweight

The application of titanium alloy in automobile intake and exhaust is far more than the two labels “light” and “expensive”.

1) Significant Weight Loss: the density of titanium alloy is only 60% that of stainless steel. A set of titanium alloy intake and exhaust pipes can reduce weight by nearly half compared to original stainless steel or cast iron parts. This means that the front load is reduced, the front axle traceability and steering response are directly improved, and the handling is more agile.

2) High Temperature Resistance & Corrosion Resistance: the exhaust system is in a high temperature, high humidity and high salt environment for a long time. Titanium alloy has far superior high temperature resistance and corrosion resistance to stainless steel. Even if it works under extreme working conditions for a long time, there will be no corrosion, thermal cracking or deformation problems, and its life span is significantly extended.

3) Sound Characteristics: The titanium alloy pipe wall is thinner and more rigid, which can show a crisp, high-pitched and metallic exhaust sound, which is sharply different from the thick style of stainless steel, and has become an auditory symbol for performance fans to chase.

2. Burning Aesthetics: Each Piece Is A Unique Work Of Art

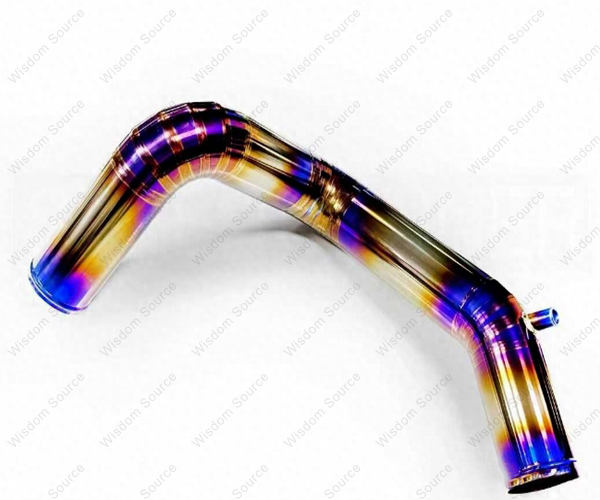

The most recognizable charm of titanium alloy lies in its unique controllable color burning process. By precisely controlling the heating temperature and time, oxide films of different thicknesses will form on the surface of the titanium alloy, which in turn interferes with light waves, showing gradient colors from gold, rose gold, sapphire blue to dazzling purple.

Due to the subtle differences between the temperature control curve and the heat diffusion path, the burning color pattern generated by each set of titanium alloy exhaust gas cannot be copied. This kind of visual effect of ”performance and appearance coexist" has made the intake and exhaust system from hidden mechanical components to the most ornamental modified business card of the vehicle.

3. See The True Chapter For The Process: Fish Scale Welds And Non-Destructive Installation

Titanium alloy processing has extremely high process requirements. High-quality titanium alloy intake and exhaust system is inseparable from two core processes:

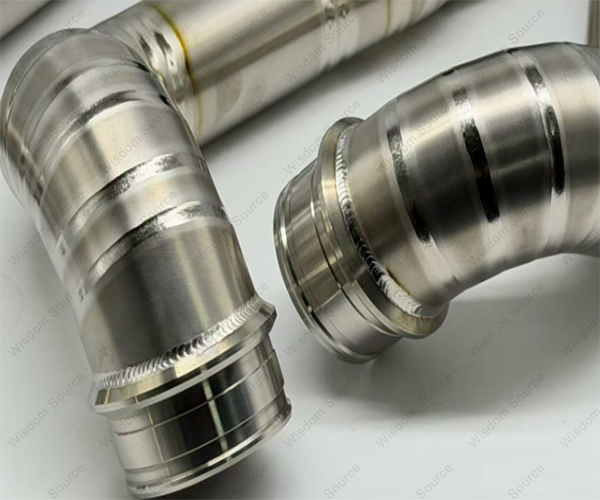

1) Argon Arc Welding & Fish Scale Pattern: Experienced welders use manual argon arc welding, and each weld presents a neat and uniform “fish scale pattern". This is not only beautiful, but also ensures the strength and air tightness of the welding place, and eliminates hidden dangers such as air leakage and cracking.

2) CNC Pipe bending and 3D Scanning Molding: With the help of CNC pipe bending technology, the angle and curvature of the pipeline can be accurately controlled to ensure a perfect fit to the installation position of the original vehicle and achieve non-destructive installation. For complex designs or models with a large degree of modification, samples will be made through 3D scanning and modeling, and mass production will be carried out after the actual car is tested to maximize adaptability.

Customization: Release The Exclusive Soul Of Each Car

Mass-produced products can never satisfy real modified players. Another major trend of titanium alloy intake and exhaust systems is full-process customization：

1) Performance adjustment: according to engine displacement, turbine pressure, driving habits, etc., optimize the diameter, direction and silencing structure of the pipeline to maximize the power potential.

2) Personalized appearance: customize the unique color burning effect, special-shaped pipeline layout, and even carve an exclusive logo to make the exhaust system a unique identity symbol.

From a single exhaust tail nozzle to a complete set of turbocharging pipelines, as long as they can be designed, they can be realized through modern titanium alloy processing technology.

Summary: Not Only Exhaust, But Also The Choice Of Hardcore Players

The titanium alloy intake and exhaust system is no longer exclusive to the racing circuit. With its extreme light weight, excellent heat and corrosion resistance, unique color burning aesthetics, and highly customizable flexibility, it is becoming the ultimate choice for more and more hardcore players.
