Titanium Alloy Spring: The "Elastic Pioneer” In The High-End Field

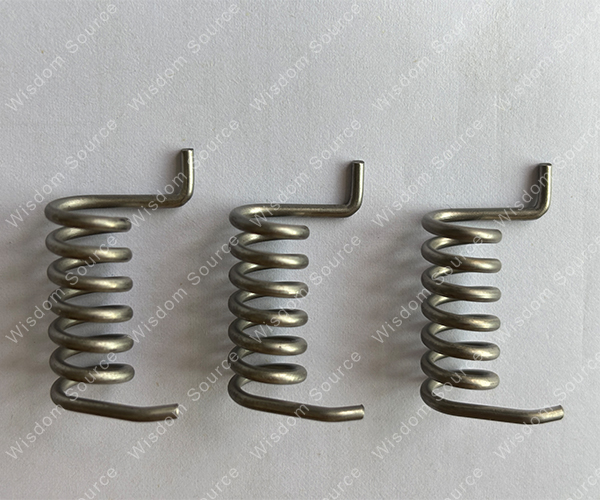

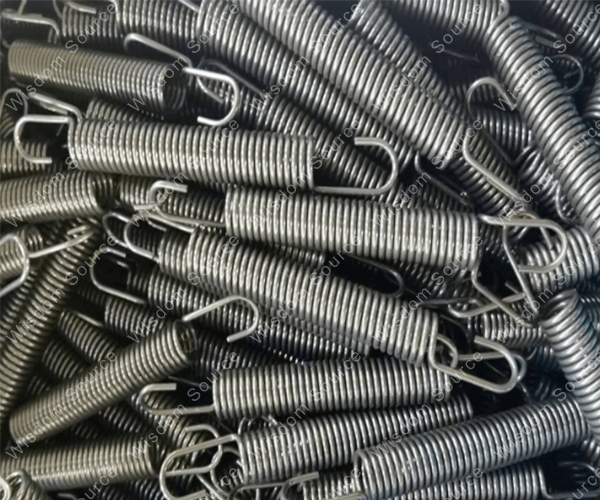

It is accurately retracted on the landing gear of aerospace spacecraft, gently supports the hope of life in medical devices, and lightly copes with complex road conditions in high-end automobiles. Titanium alloy springs, with their unique performance advantages, are becoming indispensable key components in many high-end fields. This article will analyze the performance characteristics, process difficulties and solutions of titanium alloy springs in depth, and show its rich application scenarios.

1. Excellent Performance: Full Of Multi-Dimensional Advantages

(1) High Specific Strength And Elasticity Coexist

Titanium alloys (such as Gr5 and Gr9) show strong overall performance. Its strength is comparable to that of steel, with a tensile strength of 800-1100 MPa, but its density is only 60% of that of steel. This low-density and high-strength characteristic greatly reduces the weight of titanium alloy springs under the same carrying capacity. At the same time, its elastic modulus (110-120 GPa) is lower, which can provide greater elastic deformation capacity, high elastic specific work, and better energy storage capacity than steel. In scenarios where high energy absorption is required, such as shock absorption springs, titanium alloy springs can absorb and release energy more effectively, providing stable elastic support for the equipment.

(2) Super Corrosion Resistance

Titanium alloy has the ability to be “immune” to corrosive media such as seawater, chloride ions, and body fluids.In the marine environment, ordinary metal springs are susceptible to corrosion and rust damage by seawater, which affects the normal operation of equipment. The titanium alloy spring can work stably for a long time without additional anti-corrosive treatment. In the medical field, as implants such as heart stent springs, titanium alloy springs will not react chemically with body fluids, avoiding the harm of harmful substances due to corrosion to the human body, and ensuring the health and safety of patients.

(3) Long Fatigue Life

The fatigue limit of titanium alloy can reach 50%-60% of the tensile strength, while steel is about 40%. This means that under high-frequency dynamic loads, such as aero-engine valve springs, titanium alloy springs can withstand more cycles without fatigue fracture.Its long service life reduces the maintenance cost and replacement frequency of equipment, and improves the reliability and safety of equipment.

(4) Non-Magnetic And Bio-compatible Titanium Alloy Is Non-Magnetic.

This characteristic enables it to work normally in an MRI (magnetic resonance imaging) environment without interfering with the imaging results. At the same time, titanium alloys have passed ISO 5832-3 medical certification, such as TA1 pure titanium or Gr5ELI, which have good bio-compatibility and will not cause rejection reactions in the human body. They are widely used in the field of medical implants.

2. Craft Refinement: Break Through Difficulties And Create High-Quality Products

(1) Material Selection:

Accurately match the requirements. Different application scenarios have different performance requirements for titanium alloy springs, so it is necessary to accurately select the appropriate alloy material. Gr5 (Ti-6Al-4V) has excellent overall performance and moderate cost, making it suitable for most spring applications. TA18 (Ti-5Al-4V-0.5Sn-0.5Mo) has better high temperature resistance and can be used in environments ≤450℃, such as engine valve springs.Pure titanium (Gr1/Gr2) has excellent plasticity, but low strength, and is suitable for low-load springs, such as some occasions where strength is not required but good elasticity is required.

(2) Molding Process:

Hot and cold have their own challenges. Cold forming: suitable for wire materials with a diameter of ≤6 mm, such as medical miniature springs. However, titanium alloys harden quickly during cold work, and intermediate annealing (700-800℃) is required during the cold forming process to restore the plasticity of the material. At the same time, the large amount of rebound is one of the difficulties of cold forming, which is 20%-30% higher than steel.In order to solve this problem, it is necessary to ensure that the dimensional accuracy of the spring meets the requirements through mold compensation design or multiple molding corrections. Thermoforming: The temperature range is 750-900℃ (Gr5) or 700-850℃ (Gr9), and inert gas protection is required during the thermoforming process to prevent material oxidation. The advantage of thermoforming is that it can process large-size springs, such as coil springs for aviation, and can reduce residual stress and improve the performance stability of the spring.

(3) Heat Treatment:

The key to optimizing performance is stress relief annealing: annealing at 500-650℃ for 1-2 hours can eliminate cold processing stress, improve the dimensional stability of the spring, and reduce deformation during use. Solution + aging (only α-β alloys such as Gr5): First perform solution treatment (900-950℃ water quenching), and then aging treatment (480-550℃× 4 - 8h), which can increase the strength of the spring by 10%-15%, and further improve its carrying capacity.

(4) Surface Treatment:

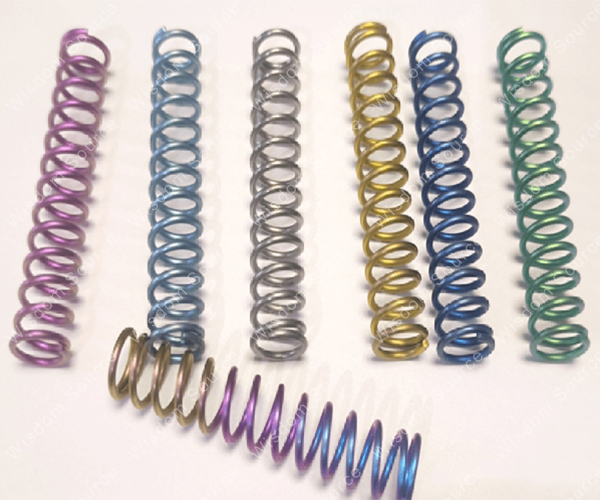

Enhance performance and life Shot peening strengthening: Through shot peening treatment, a compressive stress layer is formed on the surface of the spring, with a depth of up to 0.1-0.2mm, which effectively improves the fatigue life of the spring and enhances its ability to resist fatigue fracture. Anodizing: TiO₂ film (5-20 µm) is generated, which can not only enhance the wear resistance of the spring, but also improve its insulation. It is suitable for some occasions where wear resistance and insulation are required.

(5) Welding And Connection:

To ensure structural stability, laser welding is commonly used for the connection of closed end springs. During the welding process, the heat input needs to be strictly controlled to prevent the β-phase from coarsening and brittleness, which affects the performance of the spring. The precise welding process can ensure the structural stability and reliability of the spring.

3. Wide Range Of Applications: Show Off Your Skills In Many Fields

(1) Aerospace: Reliable Support For Soaring In The Sky

In the aerospace field, titanium alloy springs play an important role. The landing gear spring is made of Gr5 material, after thermoforming and aging treatment, the fatigue life is >100,000 times, and it can withstand the huge impact force and frequent load changes when the aircraft is taking off and landing. The engine valve spring is made of Gr9 material, cold-drawn wire and shot peening technology are used, and the temperature resistance is 450℃ to ensure the stable operation of the engine in a high temperature environment.

(2) Medical Equipment: The Gentle Power To Protect Life

The field of medical devices has extremely high requirements for the bio-compatibility and performance stability of materials. The vascular stent spring adopts Gr1 cold drawing, with a diameter of only 0.1-0.3mm, and is electrolytic polished to Ra<0.1µm. The surface is smooth and will not cause damage to blood vessels. Its good elasticity and bio-compatibility can provide stable support for blood vessels and help patients regain their health.

(3) Automotive Industry: A Lightweight Choice To Improve Performance

Titanium House reported that in recent years, the application of titanium alloy springs in the automotive industry has shown explosive growth. The racing suspension spring is made of Gr5 material, which is 40% lighter than the steel spring, and the stiffness is adjustable at the same time. The reduced weight can reduce the energy consumption of the car and improve its acceleration performance and handling. The adjustable stiffness can be optimized according to different track conditions and driving needs, providing racers with a better driving experience.

4. Comparative Steel Springs: Advantages And Challenges Coexist

Compared with steel springs (such as 60Si2MnA), titanium alloy springs have obvious advantages.Its density is 4.5 g/cm3, which is 40% lighter than steel springs, and it has great potential for lightweight. The fatigue limit is 450-600 MPa, which is higher than the 300-400 MPa of steel springs, and the service life is longer. In terms of corrosion resistance, titanium alloy springs are maintenance-free and suitable for marine and marine environments, while steel springs require coating or stainless steel, which increases costs. However, titanium alloy springs are also facing high cost challenges, including material costs and processing costs.

5. Looking To The Future: Innovation-Driven Development

With its advantages of light weight, high fatigue life, and corrosion resistance, titanium alloy springs have shown broad application prospects in high-end fields. But at the same time, the problems of rebound control, oxidation protection and high cost of thermal processing also need to be further solved. In the future, the development of low-cost β-titanium alloys (such as Ti-3Al-8V-6Cr-4Mo-4Zr) will become a trend. This alloy can further improve cold formability, reduce production costs, and promote the wide application of titanium alloy springs in more fields. With the continuous progress and innovation of technology, titanium alloy springs are expected to become the mainstream choice of springs in the high-end field, providing stronger support for the development of various industries.
