| Product
Name |
Titanium

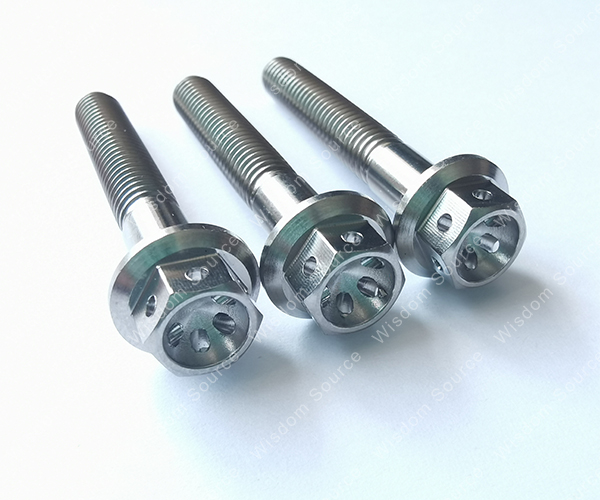

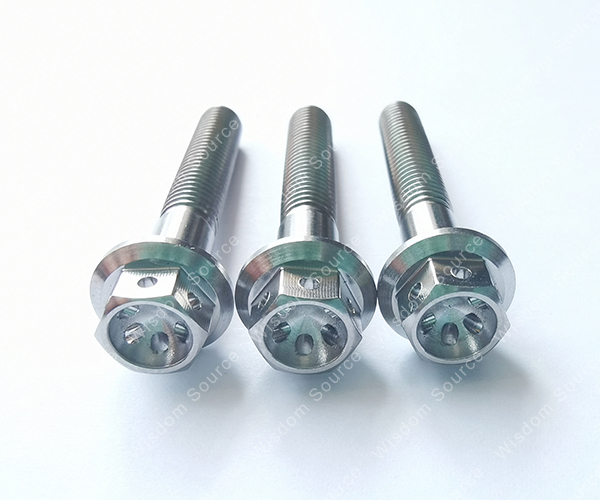

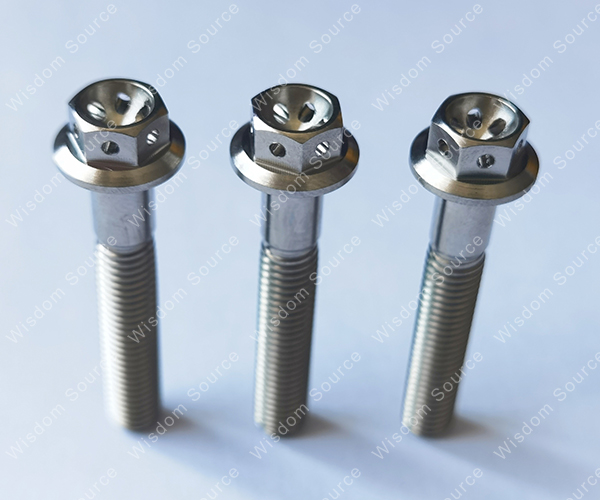

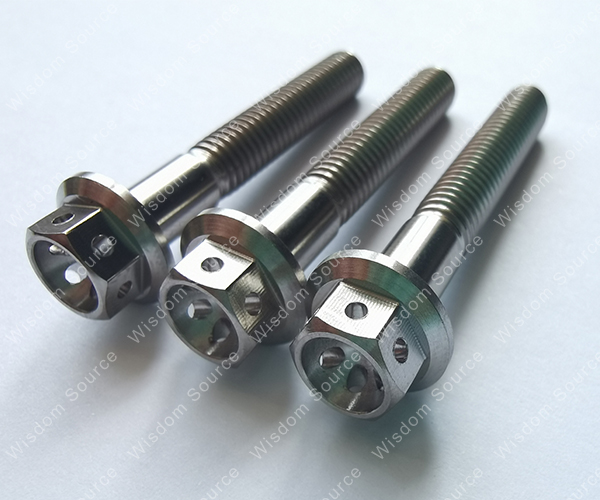

Flange Head Bolts With Dish Head and 6 Holes Around |
| Material |
Titanium Alloy,
Ti-6AI-4V |
| Grade |
Ti Gr5 |
| Density |
4.51g/cm3 |
| Size |
M6x1.0xL, M8x1.25xL,
M10x1.5xL and Customized |
| Colour |

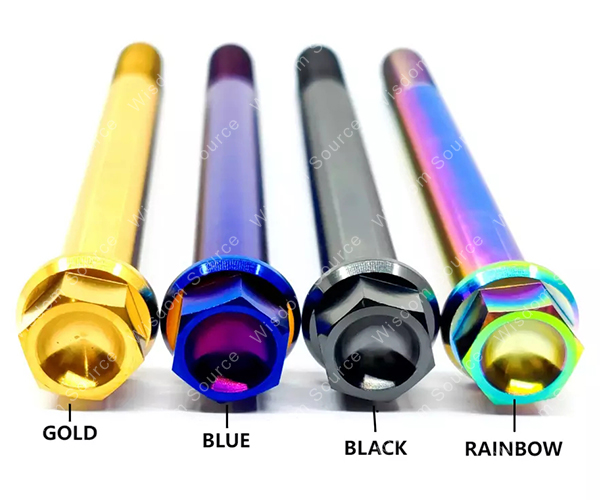

Titanium Natural
Color, Anodized Green, Anodized Blue, Anodized Purple, PVD Gold, PVD Black,
PVD Rainbow, Burnt Blue, etc. |
| Technique |
CNC Machined |
| Surface |
Machined and Polished |
| Features |
1. All Factory Image
Racing Titanium hardware is machined from Titanium Grade 5 (6AL4V) with
rolled threads for additional strength; |
| 2. Titanium Grade 5 (Ti-6Al-4V) fasteners are equivalent strength to
SAE Grade 8 or Metric 10.9 steel hardware; |
| 3. Titanium hardware averages 45 percent lighter than steel while
retaining the same strength; |
| 4. Ti-6Al-4V alloy combines high strength, light weight, and high
corrosion resistance; |
| 5. It's recommended to use anti-seize compound on the threads &
flange to prevent galling or seizing, waterproof grease or threadlocker is
also acceptable. |
