Titanium Alloy 3D Printing Leads The New Trend Of Technology

Titanium Alloy 3D Printing Leads The New Trend Of Technology

Titanium is one of the most commonly used metals in additive manufacturing and is widely used in aerospace, joint replacement and surgical tools, racing and bicycle frames, electronic products and other high-performance products.

Titanium and titanium-based alloys have high mechanical strength, high strength-to-weight ratio, and better corrosion resistance than stainless steel. This material can make rockets and aircraft lighter, thereby saving fuel and increasing payload capacity. It can also make electronic products such as smart phones and VR glasses lighter in weight. The same is true for medical implants. In addition, if the inherent quality of #titanium is combined with the unique features of 3D printing, the advantages will increase exponentially.

3D printing technology can manufacture this expensive metal more efficiently with lower raw material consumption and less waste. As a rapid prototyping technology, metal 3D printing usually only uses the amount of material required to manufacture parts, as well as a relatively small amount of support structure.

3D printing can also realize complex designs, such as internal passages, hollow or lattice filling parts to reduce weight, which cannot be achieved by any other manufacturing method.Since no molds or tools are required, #titanium alloy 3D printing technology can produce cost-effective unique components, such as patient-specific implants, prototypes, and research tools.

The applications of 3D printed titanium in manufacturing, healthcare, space exploration and other fields are numerous. Let's take a look at why #titanium is so suitable for additive manufacturing and its current application areas.

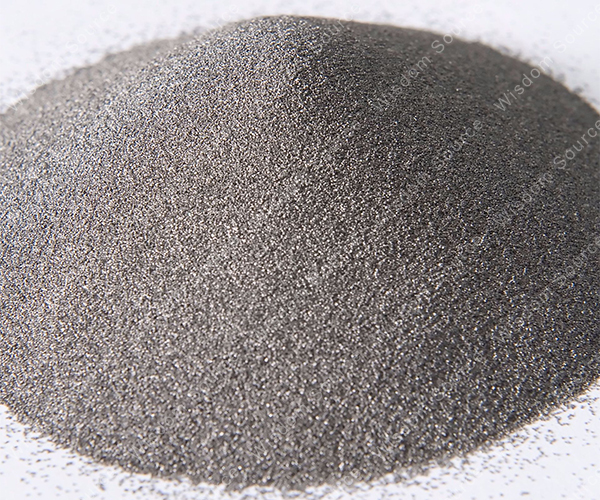

Gr5 (TC4) titanium alloy powder, as a high-performance metal material, occupies an important position in the field of 3D printing due to its unique alloy composition and excellent overall performance. This powder mainly consists of titanium (Ti) as the basic element, and combines about 6% of the stable α-phase element aluminum (Al) and about 4% of the stable β-phase element vanadium (V). It also contains trace amounts of iron (Fe≤0.25%), carbon (C≤0.08%), oxygen (O≤0.16%), nitrogen (N≤0.01%), hydrogen (H≤0.01%) and other elements.

In the application of 3D printing technology, Gr5 (TC4) titanium alloy powder has shown many advantages and characteristics.

First of all, its excellent mechanical properties enable the printed parts to maintain lightweight while possessing high strength, high toughness and excellent wear resistance. This characteristic makes Gr5 (TC4) titanium alloy an ideal choice for demanding material properties in aerospace, automobile manufacturing and other fields.

Secondly, the high degree of design freedom of Gr5 (TC4) titanium alloy powder is a highlight of its 3D printing. With the help of 3D printing technology, we can make full use of this powder material to create complex structures and internal hollow designs that are difficult to achieve by traditional manufacturing methods. This not only significantly reduces the weight of the product, but also improves the performance of the product.

In addition, Gr5 (TC4) #titanium alloy powder has also shown good performance in the biomedical field. Its excellent bio-compatibility makes it an ideal material for making medical devices such as artificial joints and orthopedic implants.This feature helps to accelerate the rehabilitation process of patients and improve the quality of life of patients.

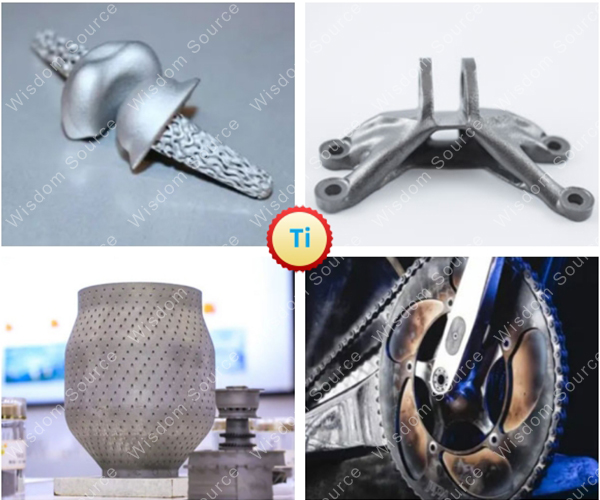

In the field of 3D printing, Gr5 (TC4) #titanium alloy powder has a wide range of applications. In the aerospace field, it can be used to manufacture key components such as aircraft fan blades and compressor blades, as well as high-temperature components such as rocket nozzles and turbine discs.In the medical field, Gr5 (TC4) #titanium alloy powder can be used to manufacture customized orthopedic implants, dental implants and surgical instruments.In addition, in the automotive industry, it is also used to manufacture high-performance automotive engine components and complex components.

In short, Gr5 (TC4) titanium alloy powder plays an important role in the field of 3D printing due to its unique composition, excellent properties and wide range of uses. Whether it is in the aerospace, medical or automotive industries, Gr5 (TC4) titanium alloy powder has shown its excellent performance and wide application prospects.
